Woven Fabric Defects: Where Each One Comes From

Why the origin matters more than the name

When a roll arrives with a fault on it, the useful question is not what it is called but where it happened. A fault introduced at the yarn stage runs through the whole lot. A fault from a single loom stoppage sits at one point along the length. A fault created in finishing may affect every roll processed in that batch, including rolls woven weeks apart.

That distinction also tells you whether a fix is possible. A shade issue caught before finishing can often be corrected. A crease heat-set into a polyester blend cannot be pressed out afterwards, because the fiber has been set in that shape.

We weave in-house at our own unit in Atoon and send cloth to processing partners in Bhilwara for dyeing and finishing. That split is why we can tell a buyer which stage a fault came from, instead of treating the whole run as one unknown.

Defect origin map

This is an origin map, not a severity ranking. A single small oil spot may be trivial on a workwear order and unacceptable on a white shirting one, which is why inspection is graded against the end use rather than against a universal pass mark.

The faults that start at the loom

A starting mark appears because the warp relaxes while a loom is stopped. When the loom restarts, the point where the cloth forms (the cloth fell) has shifted, so the first picks after the restart sit at a different density from the rest. It shows as a thin line or a thick one, depending on whether the tension at restart was lower or higher than normal. Longer stoppages make it worse.

Reed marks come from the reed, the comb-like part that spaces the warp ends. Bent or unevenly spaced wires leave lengthways lines where the warp ends are grouped slightly wrong. Temple marks appear at both edges because the temple, a device that grips the cloth edges, holds the cloth out to width.

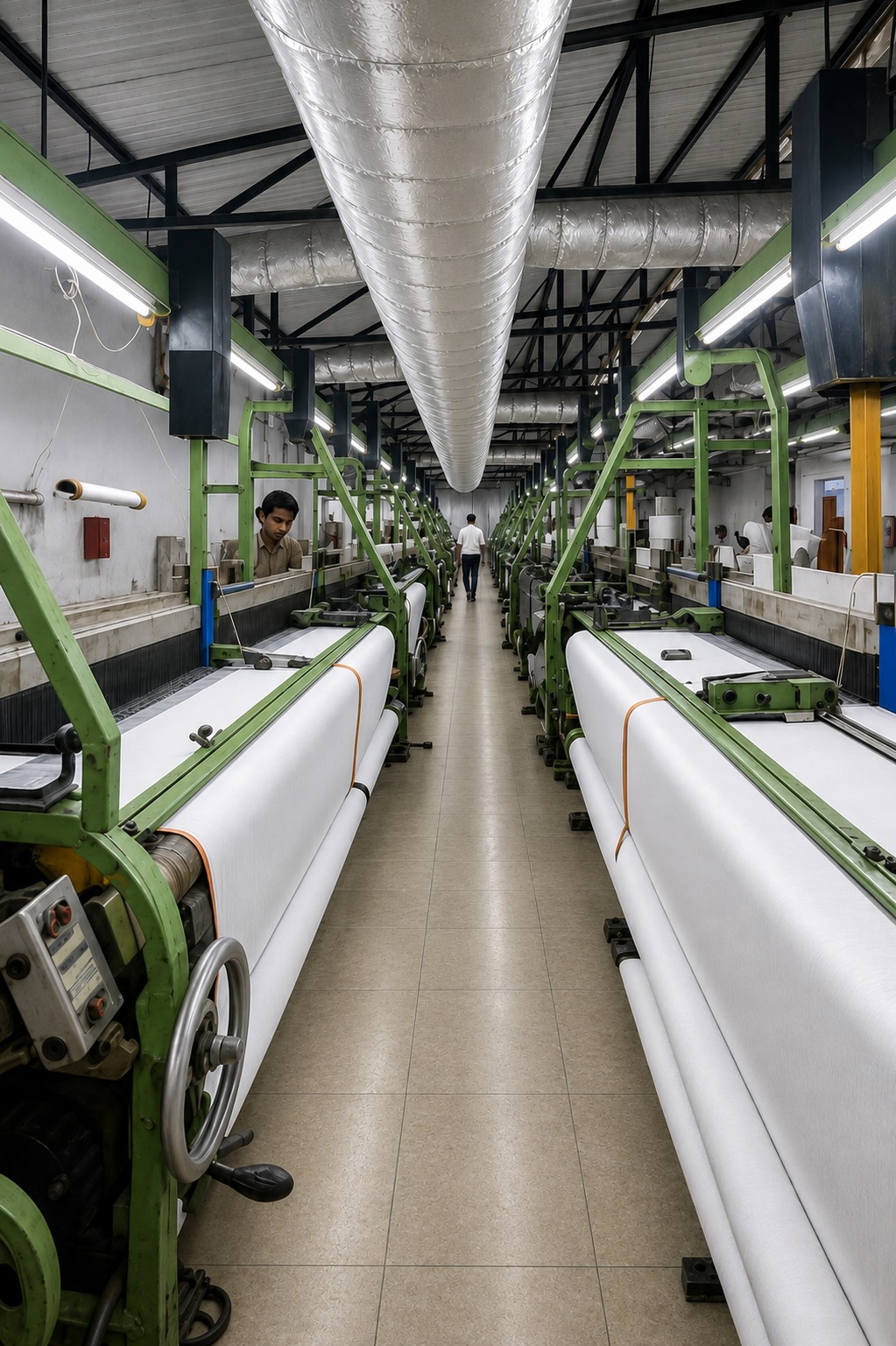

These are the faults we can see and act on at our own weaving floor, before greige cloth leaves for processing.

Bow and skew: how to measure them

Bow is when the weft yarns curve across the width of the cloth, so a pick that should run straight forms an arc. Skew is when the weft runs in a straight line but slopes, so one edge is ahead of the other. Both leave the cloth out of square, and both are fixed or not by the finishing process, not the loom.

Skew is measured as a percentage: the sideways displacement of a weft thread divided by the width over which it is measured, times 100. A thread that slides 30 mm over 1,500 mm of width is out by 2 percent. It is a slope, not an angle, so it is quick to check on an inspection table. Test methods exist for it, including ASTM D3882 and an ISO method, so name the one you use in the spec.

Judge a roll by its worst section, not its average, because the fault changes along the length. On checks and stripes the lines climb across the finished garment, and a few percent of skew is visible even when the cloth passes every other test. Lay out a test cut of the actual pattern pieces before cutting a program from the lot. A twill can look slightly skewed by design, so tell the inspector which cloths are meant to look that way.

The faults that start in dyeing and finishing

Bow and skew are pulled into the cloth when tension is uneven across the width. They must be corrected before the cloth is gripped for setting. Once the cloth is held in a distorted position and set, the distortion is locked in.

Shade banding across the width usually traces back to uneven conditions across the machine rather than to the dye recipe. A polyester blend dyes according to how the fiber has been set, so uneven temperature across the width changes how much dye each part of the cloth takes up. That is the mechanical link between a setting fault and a shade band.

Creases follow the same logic. A rope crease that cools quickly in a thermoplastic fiber is set the same way a pleat is set on purpose, and no later pressing will remove it.

These stages run at our processing partners. What we do is check the returning lot against the approved reference standard before it is warehoused, so a finishing fault is caught at the mill rather than at your cutting table.

What to do when you find a fault on delivery

• Photograph it with something for scale, and note how far along the roll it sits and how far in from the selvedge.
• Check whether it repeats. A repeating fault points at the machine, a one-off points at an event such as a stoppage.
• Check whether it appears on more than one roll. Across rolls points at yarn or at a processing batch, one roll points at one loom.
• Say whether it is within the cuttable width or in the selvedge zone you were going to lose anyway.
• Raise it before cutting. Once the cloth is cut the origin becomes much harder to establish and the remedies narrow.

Our guide on how to inspect uniform fabric on delivery covers the receiving check itself in more detail.

A note on point-based inspection systems

Fabric inspection is commonly scored by assigning penalty points to each defect according to its length, and totalling them over a set area. Buyers and mills then agree a threshold above which a roll is rejected.

Two things are worth knowing. First, the scoring method and the acceptance threshold are separate. The method comes from a published standard. The threshold is a commercial term you agree in your contract. Second, a widely quoted threshold figure is trade habit, not something written into the standard. So put the number you want into your purchase order instead of assuming it applies by default.

The failures that only show up in the garment

Everything above is found on the inspection frame. A separate group of problems passes roll inspection cleanly and appears only after the cloth is cut and sewn, because each is a property of the fabric, not a mark on it. Looking at the roll will not catch any of them. For this map applied to a real dispute, read a consignment held at incoming inspection, and how the three causes were separated.

Seam slippage is the clearest example, and the one most often blamed on the stitching unit. Yarns move away from a stitched seam under load, opening a gap along the seam line while the sewing thread stays intact. It comes from the cloth, so it is tested rather than seen.

The common thread is that a swatch cannot show any of them. Each needs either a fabric test with a named method or a garment stitched from the approved lot, which is why the fit sample is worth the fabric it costs. See uniform fabric sampling for what to ask for and when.

FAQ

Frequently asked questions

What is a temple mark or stop mark in fabric?

Both are weaving faults. A temple mark is distortion or pin marks near both selvedges, left by the temples that grip the cloth to hold it to width on the loom. A stop mark, also called a starting mark, is a line across the width where the loom stopped and restarted and the first picks sat at a different density. Both are visible in greige and should be caught at the weaving floor.

What causes bowing in a checked or striped uniform fabric?

Uneven tension across the width during wet processing and setting, which pulls the centre of the cloth ahead of the edges or the reverse. It is most visible on checks and stripes because the pattern makes the curve obvious. It has to be corrected before the cloth is held and set, since setting locks the distortion in.

Why does a crease sometimes refuse to press out?

Because polyester is thermoplastic. If a crease is present while the fabric is hot and it is then cooled quickly, the fiber is set in that shape, in the same way a deliberate pleat is set. Later pressing at normal garment temperatures will not undo it.

Is a shade difference between the middle and the edges a dyeing fault or a weaving fault?

Almost always a wet-processing one. It usually reflects uneven conditions across the width of the machine rather than the dye recipe itself, since the recipe is the same across the whole piece.

Can every fault be identified after the fabric is finished?

Not always with certainty. Some faults look similar whatever their origin, and finishing can mask a weaving fault or make it more visible. This is why the pattern matters: whether the fault repeats, whether it appears on one roll or several, and where it sits along the length.

Which of these stages does Benny Cotts run itself?

Weaving, at our own unit in Atoon, Bhilwara. Dyeing and finishing run through processing partners in the region. We check the returning lot against the approved reference standard before despatch, so faults from either stage are caught at the mill.

The fabric passed inspection but seams are opening in the finished garments. Is that a fabric fault?

Usually yes, and it is called seam slippage. Yarns move away from the seam under load because the fiber is slick, the sett (yarns per inch) is low, or the finish reduced yarn-to-yarn friction. The sewing thread stays intact throughout, which is what separates it from a stitching fault. It is a property of the cloth, not a mark on it, so no inspection frame could have caught it. Ask for a seam slippage test result on the fabric, and for a stitched sample loaded at the stress seams, before bulk cutting rather than after.
